Tech Specs
Tech Specs
Need help? Please call our technical department on 0121 686 8733.
| Thermostat type | Single-phase stem/rod electronic thermostat |
| Rated Current/Voltage | 16A / 230V AC |
| Safety cut-out | Bipolar with bimetallic disc |
| Functional cut-off | Unipolar |
| Safety reset | Manual |
| Max function temperature | Max 70°C / ± 2°C |
| Bimetallic disc reaction temperature | 70 ± 3°C |
| Temperature selection range | From 10°C to Max |
| Thermal hysteresis | 4 ± 2°C |
| Standard stem length | 270mm |
| Electrical connection | Quick fasten connection 6.3x1.0 mm |
| Display | TFT LCD 1.44” |
| Display panel IP Class | IP24 |
| WiFi Protocol | IEEE 802.11 b/g/n |
What's in the box?

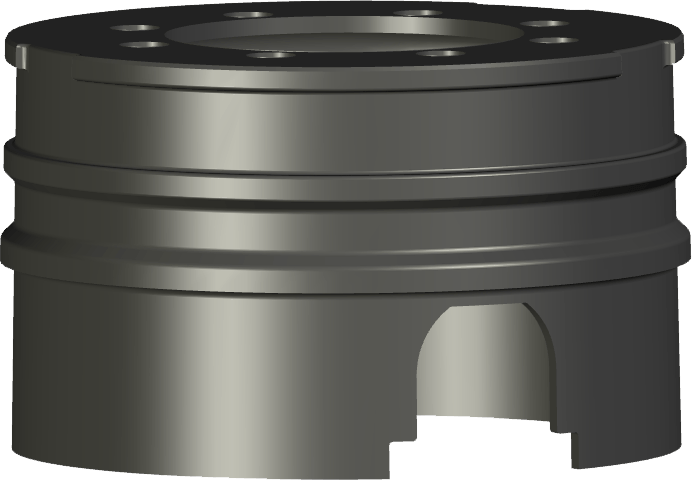

Lower Cap
Pre-drilled holes for the earth stud to retro-fit onto most immersion heaters.

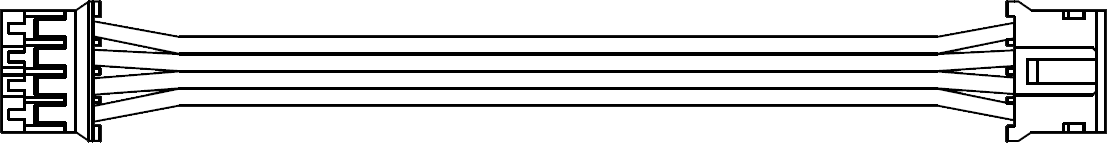

Link Wire
Connects the Smart Thermostat to the Upper Cap.

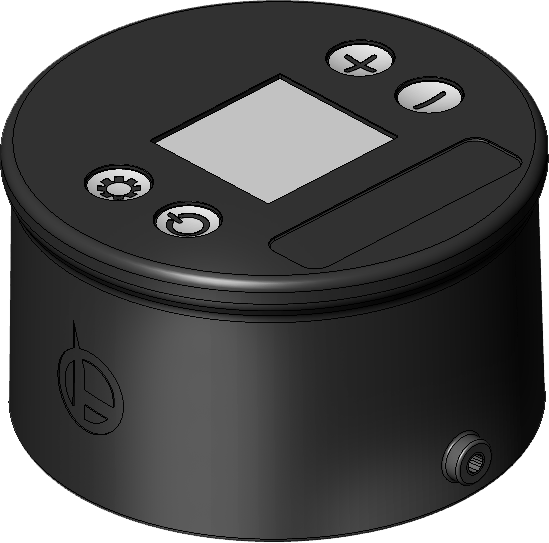

Upper Cap & Display
Working in tandem with the Lower Cap, the Upper Cap can be rotated 360° to ensure it's positioned the right way up.

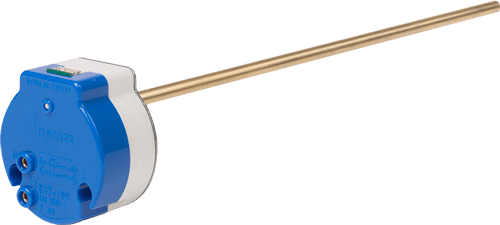

Smart Thermostat
A digital plug-in Thermostat working in tandem with the LCD and mobile application to make your water heater smart.

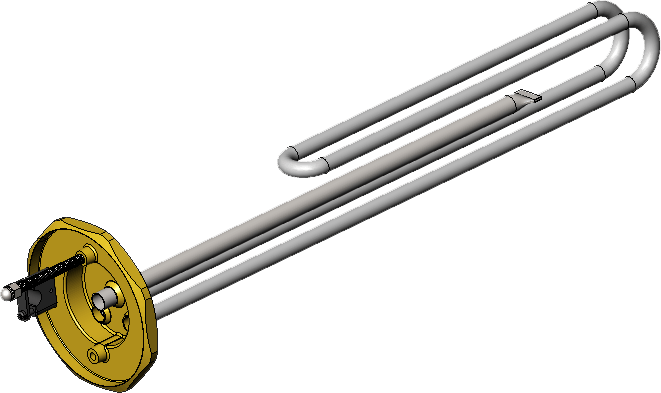

Immersion Heater
An optional extra. Available in various sizes and materials.
